1. HT PIPE has been a professionally managed Manufacturing & Exporters of PN 6 Flanges, PN 10 Flanges, PN 16 Flanges, PN 40 Flanges, 2576 Flanges , 2527 Flanges. DIN 2576 PN10 Plate flange Manufacturer Metal Industries supplies slip on flange according to din2576, slip-on-welding plate flange, which pressure grade is 10bar/PN10, Size from DN10 to DN1000, in forged steel, Stainless Steel, Carbon steel etc..

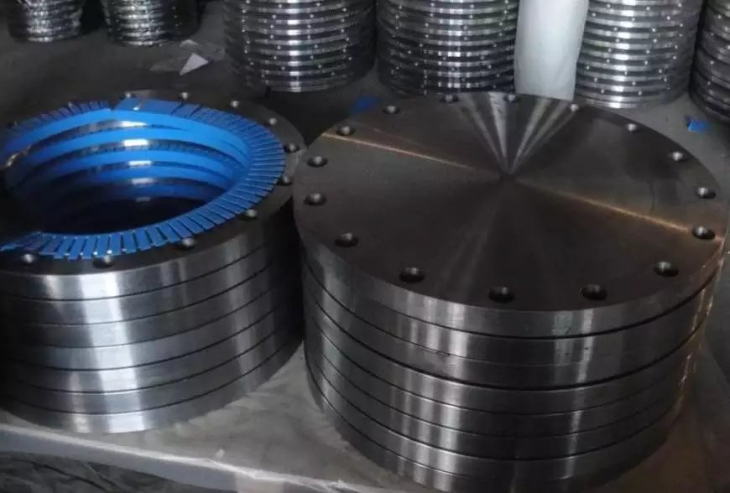

2. Description of Blind flange
Type: Blind Flange
Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
Caighdeán: ANSI, JIS, DIN, BS4504, SABS1123, EN1092-1, UNI, AS2129, GOST-12820
Méid: 1 / 2-78 orlach (DN15-DN2000)
Brú: rang ANSI 150,300,600,1500,2500, DIN PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160
Pacáil: Gan Sraithadhmad / Pailéad Adhmaid Fumigate nó Fumigate
Cóireáil Dromchla: Ola Frith-meirge, Péint Frith-meirge Trédhearcach / Buí / Dubh, Sinc, Galvanánaithe te tumtha.
E-chatalóg: Ar fáil, tabhair cuairt ar chatalóg na flange
Úsáid: Réimse Ola, Eischósta, Córas Uisce, Tógáil Long, Gás Nádúrtha, Cumhacht Leictreach, Tionscadail Phíopaí srl.
3. Sonraíocht Dlan2527 Flange Dall
Méid Píopa Ainmniúil | Toise Flange | Paraiméadar Scriú | Thart. Meáchan flange | |||
Dia Flanges | Thk of Flange | Dia na Ciorcal Bolt | Líon poill | Dia na bPoll Bolt | ||
DIN | D. | b | k | X. | d2 | KG / PCS |
10 | 75 | 12 | 50 | 4 | 11 | 0.38 |
15 | 80 | 12 | 55 | 4 | 11 | 0.44 |
20 | 90 | 14 | 65 | 4 | 11 | 0.66 |
25 | 100 | 14 | 75 | 4 | 11 | 0.82 |
32 | 120 | 14 | 90 | 4 | 14 | 1.18 |
40 | 130 | 14 | 100 | 4 | 14 | 1.39 |
50 | 140 | 14 | 110 | 4 | 14 | 1.62 |
65 | 160 | 14 | 130 | 4 | 14 | 2.14 |
80 | 190 | 16 | 150 | 4 | 48 | 3.43 |
100 | 210 | 16 | 170 | 4 | 18 | 4.22 |
125 | 240 | 18 | 200 | 8 | 18 | 6.1 |
150 | 265 | 18 | 225 | 8 | 18 | 7.51 |
175 | 295 | 20 | 255 | 8 | 18 | 10.41 |
200 | 320 | 20 | 280 | 8 | 18 | 12.31 |
250 | 375 | 22 | 335 | 12 | 18 | 18.55 |
300 | 440 | 22 | 395 | 12 | 22 | 25.47 |
350 | 490 | 22 | 445 | 12 | 22 | 31.78 |
400 | 540 | 22 | 495 | 16 | 22 | 38.5 |
500 | 645 | 24 | 600 | 20 | 22 | 60.13 |
600 | 755 | 28 | 705 | 20 | 26 | 96.07 |
700 | 860 | 30 | 810 | 24 | 26 | 133.8 |
800 | 975 | 32 | 920 | 24 | 30 | 183.29 |
900 | 1075 | 36 | 1020 | 24 | 30 | 251.7 |
1000 | 1175 | 42 | 1120 | 28 | 30 | 350.98 |
4. Tuilleadh Eolais faoi Hastelloy 800HT
Ceimic
Riachtanais Cheimiceacha | |||||||
Ni | Cr | Mn | C. | Si | Fe | C. | |
Max | 35.0 | 23.0 | 1.5 | 0.10 | 1.0 | 0.75 | |
Min | 30.0 | 19.0 | 39.5 | ||||
Ceanglais maidir le Maoin Mheicniúil | |||||
Deireanacha teanntachta, min. | Neart Toradh (0.2% OS) | Elong. in 2 in. nó 50mm (nó 4D) nóim.,% | R / A. | Cruas | |
Min | 80 KSi | 35 KSi | 25 | ||
Max | |||||
Min | 550 MPa | 240 MPa | |||
Max | |||||
5. Tionscail Iarratais Flanges Alloy 800 / 800H / 800HT
Cuideachtaí Druileála Ola Eischósta
Giniúint Cumhachta
Peitriceimiceach
Próiseáil Gáis
Ceimiceáin Speisialtachta
Cógaisíocht
Trealamh Cógaisíochta
Trealamh Ceimiceach
Trealamh Uisce Mara
Malartóirí Teasa
Comhdhlúthadáin
Tionscal na Laíon agus na bPáipéar
